MoleMax HD AMTBM
DETAIL

The most sofisticated Video Dermoscopy System available - MoleMax HD offers wide range of features build over high resolution Full HD camera with additional enhancements such as preview LCD screen, fully digital HDMI video transfer without any conversion, integrated mouse control and dual widescreen displays.

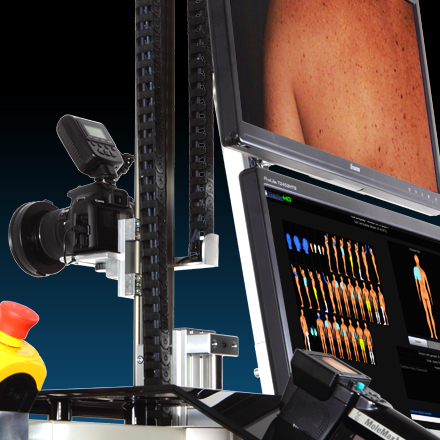

In the Automatic Motorized TBM version, MoleMax HD System is extended with additional feature called AMTBM Stand (Automatical Motor controlled Total Body Maping Stand)

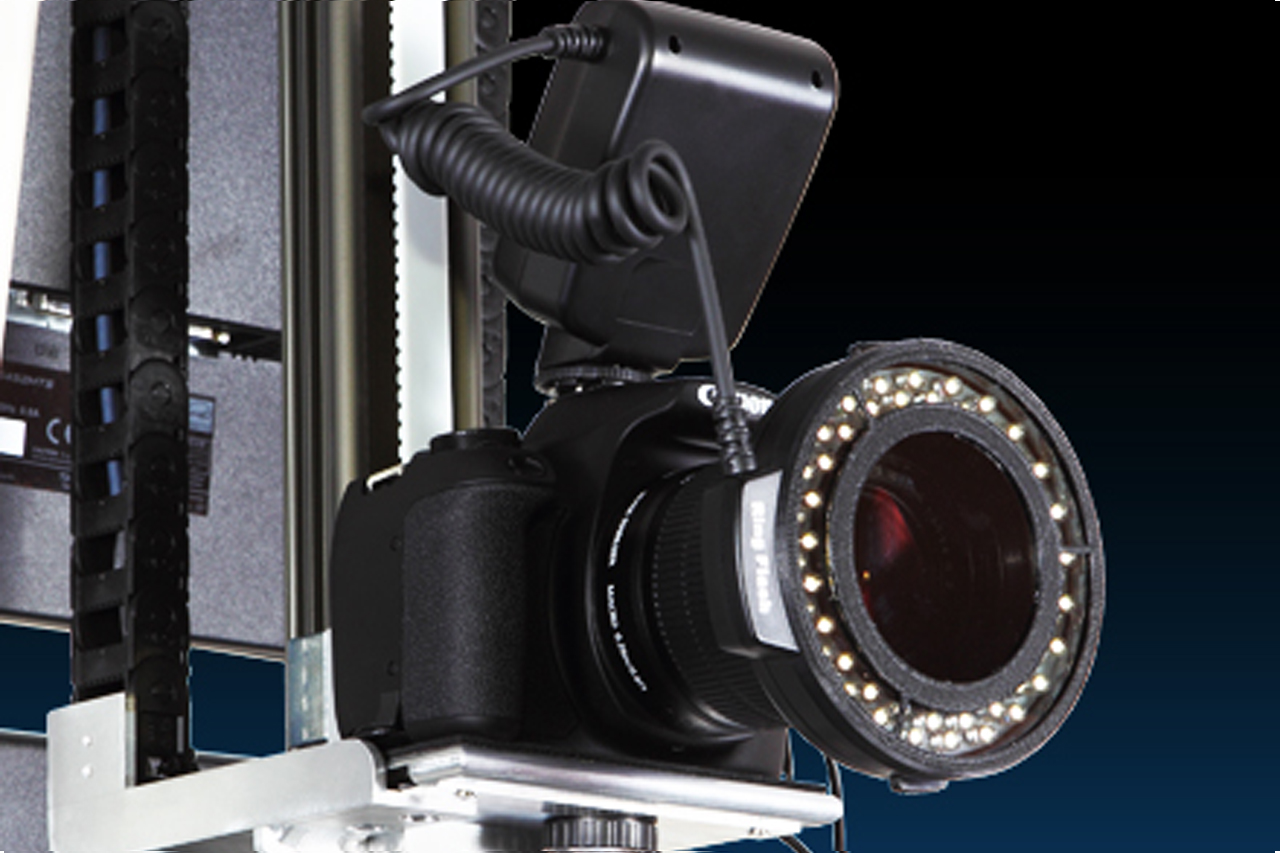

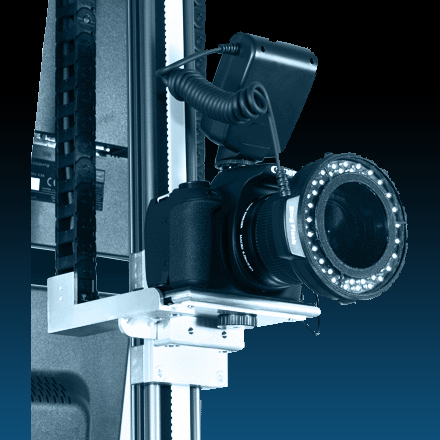

This feature offers full integration of automatic total body mapping stand into the MoleMax HD System with use of Canon SLR camera. Used in the MoleMax HD software it provides LiveImage with real full HD preview before saving. Advanced LED flash is used to achieve optimal light conditions and special polarization filter for eliminating shadows and suppressing reflections of the skin. Camera positioning is fast and accurate and offers automatic or manual repositioning together with laser and ultrasonic accurate patient positioning system.

System offers fully automatically controlled total body mapping session with 16 predefined positions!

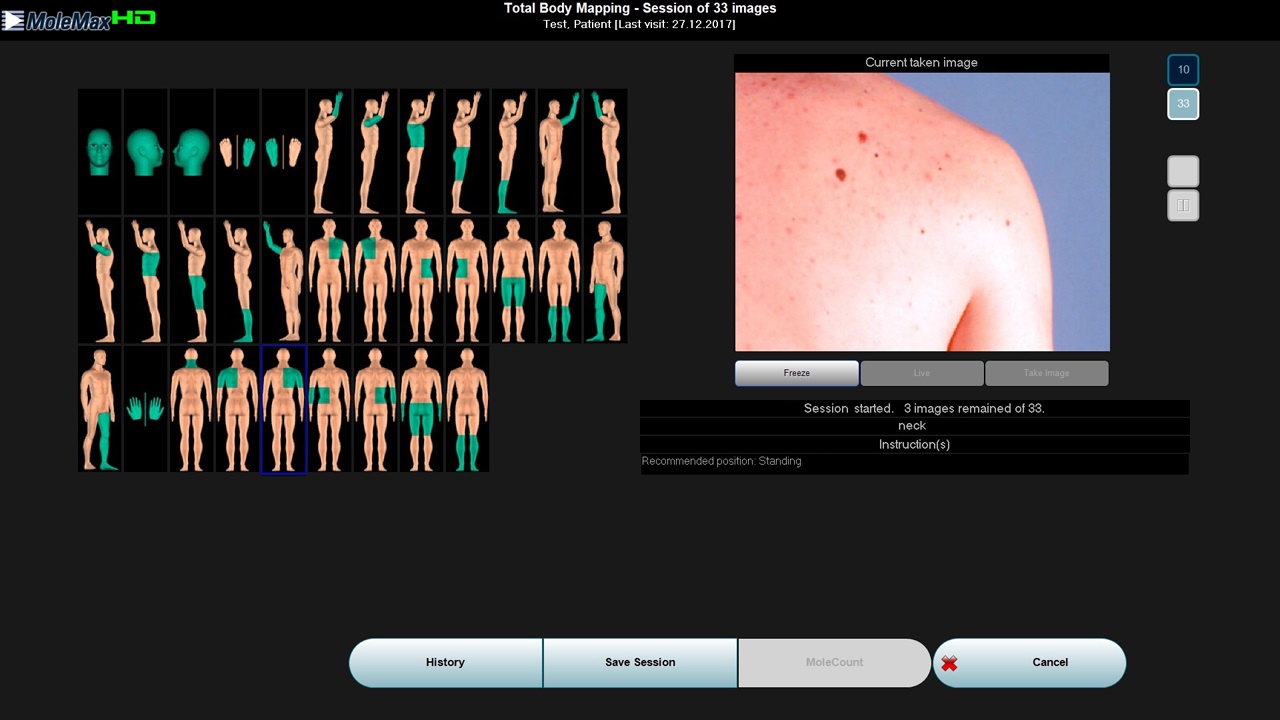

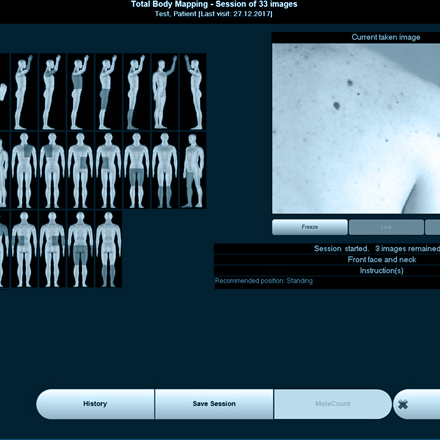

Additional body mapping sessions with 10, 26 and 33 TBM positions are available as well as possibility to create own custom TBM sessions. MoleCount software is used for fast lesion enumeration, and TBM session incorporates follow-ups with side-by-side comparison and/or image overlay as well.

Features:

• Highest Quality Live Video with fast and easy image capture
• Real Time Live follow-Up
Images taken at different dates can be compared in real time. This allows you a reliable comparison of mole alterations over long periods.
• Expertizer Plus
The basis of this unique, future oriented program is a histo- pathological secure database of images of pigmented lesions taken with MoleMax. The program package includes image analysis functions based on state of the art technology, and uses the clinically well-known ABCD Rule or Seven Point Checklist to support the classification of lesions being diagnosed.
•Trending
Macro-, Micro-, Histo-Images over time per patient, Clinical Audit and Quality assessment
• Total Body Mapping (automatized with AMTBM Stand)
The auto “body-mapping” function offers fully automatically controlled total body mapping session with 16 predefined positions!
• Full Internet Integration
• Export to a USB stick as HTML page
• Education and Science module for presentations
• Remote and local support worldwide


Additional ATBM Features:

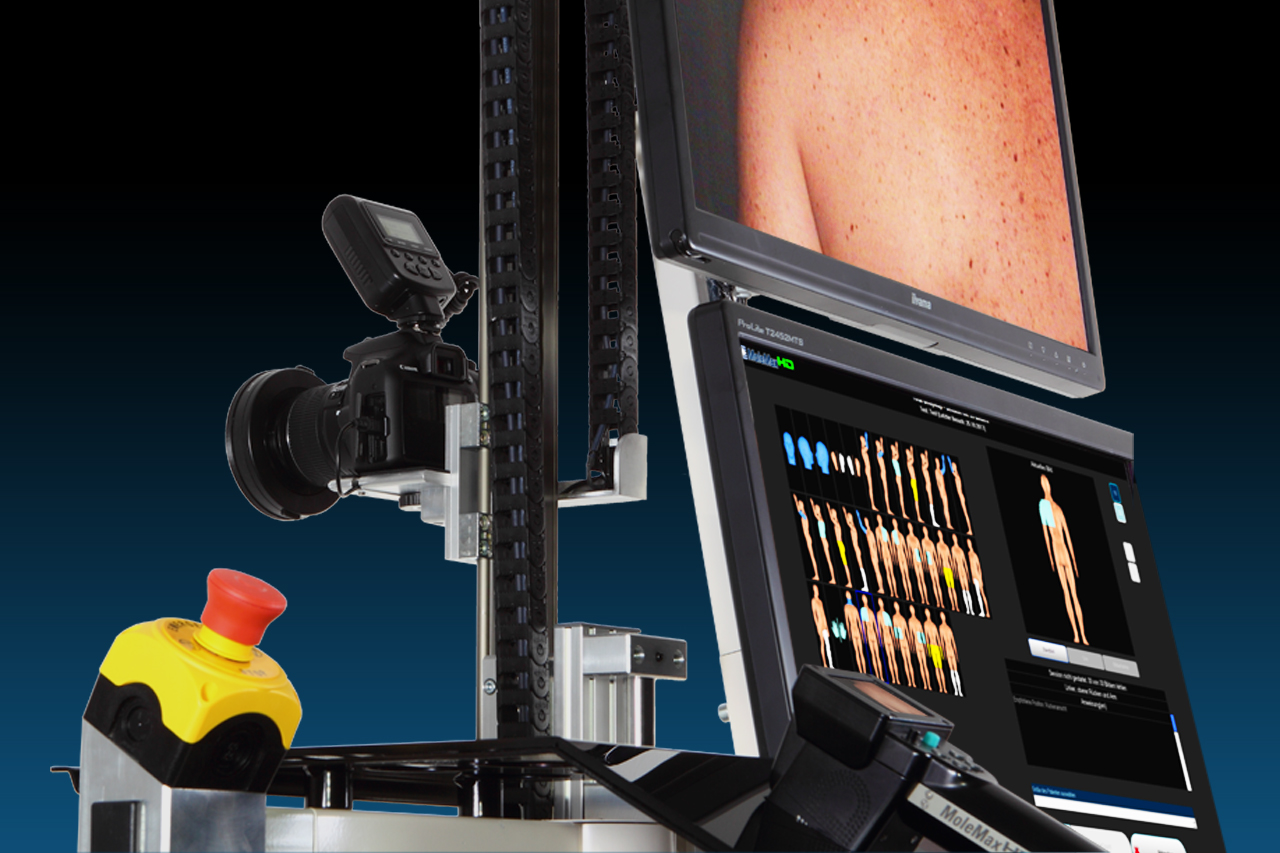

• MoleMax HD with AMTBM stand and Canon SLR camera
• Fully integrated into MoleMax HD software
• LiveVideo in real full HD preview

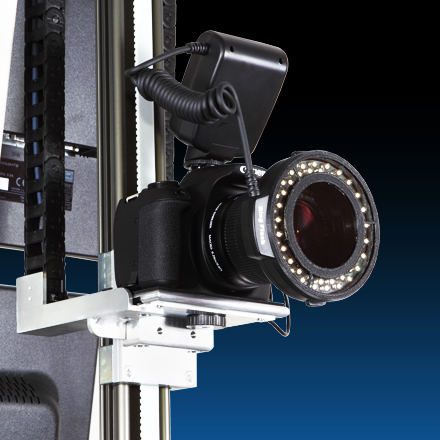

• Advanced LED flash for optimal light
• Special polarization filter for eliminating shadows and suppressing reflections of the skin
• Fast and accurate automatical camera positioning
• Possibility of automatic/manual camera repositioning
• Automatical session with 16 TBM positions
• Extended session with 26 TBM positions

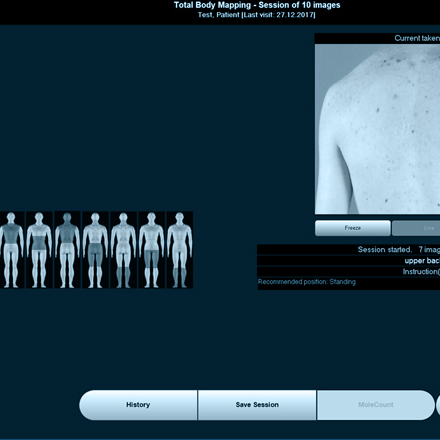

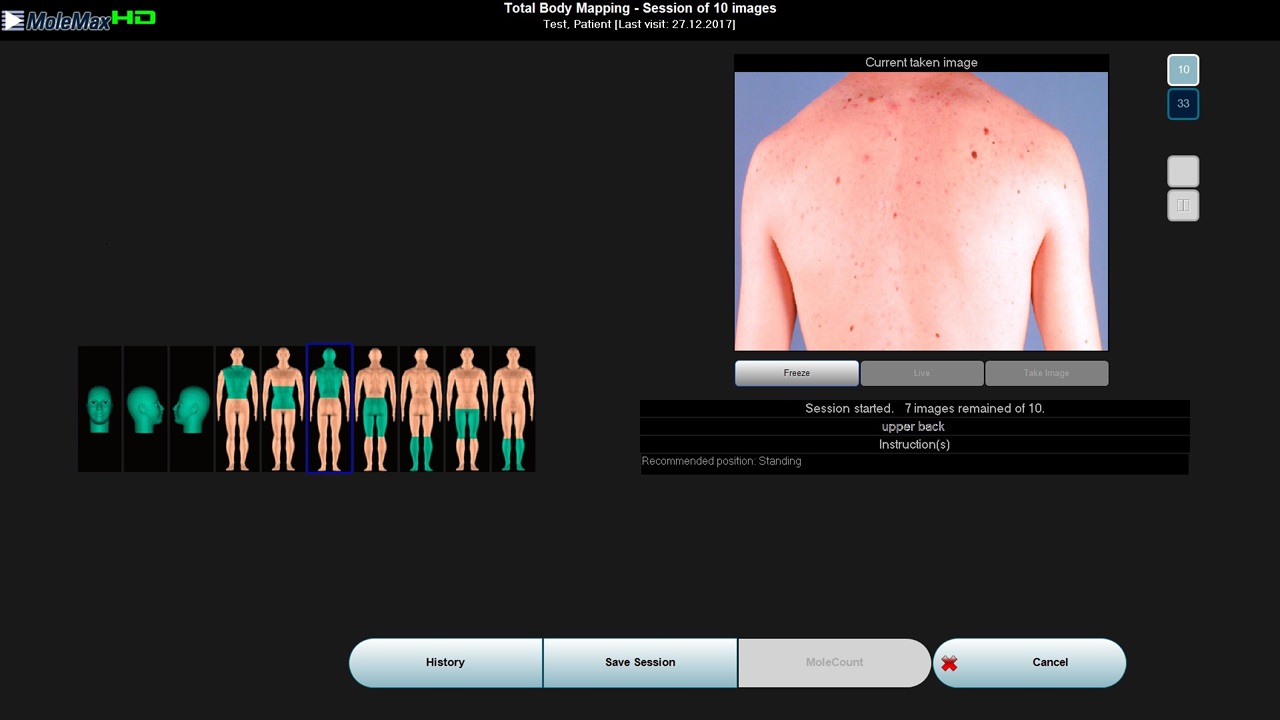

• Standard 10 and 33 TBM position sessions as known from standard MoleMax units
• Possibility to create own custom TBM sessions
• MoleCount software for fast lesion enumeration on the TBM images
• TBM session follow-ups with side-by-side comparison and/or image overlay
• Laser and ultrasonic accurate patient positioning system


The MoleMax HD Advantages:

• Unique Digital Image transfer via HDMI with no signal conversion
• Variable magnification up to 100x
• No-Oil Dermoscopy as well as traditional dermoscopy
• Two flat TFT displays also available as touchscreen
• All known MoleMax features
• Total Body Mapping capability


Unique High Definition Video Camera:

• Additional LCD Screen on the Camera for fast and easy image preview
• Full HD Industrial Camera with highest specification
• Maximum Digital Video Resolution
• Easy Handling by using control buttons directly on the Camera
• Camera completely controlled by the MoleMax Software

SPECIFICATION

Camera Specifications:

1/3 type CMOS imager
Approx. 2M effective pixels of Live Video, Effective picture elements: Approx. 2,000,000 pixels
Video signal: HD: 1080p
16x9 Aspect Ratio
Minimum Illumination 1.0lx (ICR On Mode-F1.8 50 IRE)
High-speed serial communication (max. 38.4 kbps) TTL signal-level control
TTL signal-level control (VISCA™ protocol)
Lens: 10x zoom (F1.8 to F2.1)
f=5.1 mm (WIDE) to 51 mm (TELE)
Zoom movement speed:
Optical WIDE/Optical TELE Approx. 1.0 sec
Optical WIDE/Digital 4x TELE Approx. 1.5 sec
Optical Wide/Digital 4x TELE Approx. 0.5 sec
Focus movement time: âˆž to Near Approx 0.1 sec
Digital zoom: unused
Angle of view (H): Approx. 50 degree (WIDE end) to Approx. 5.4 degree (TELE end) (When an HD or SD (SQUEEZE) signal is output)
Minimum object distance: 10 mm (WIDE end), 800 mm (TELE end)
Minimum illumination (Typical): 12 lux (F1.8) with 50 IRE 1.0 lux ICR On (F1.8) with 50 IRE
Recommended illumination: 100 to 100,000 lux
S/N Ratio: 50 dB or more
Electronic shutter speed: 1/2 to 1/10000 sec. (21 steps)
Focus: Full Auto (Normal AF/Interval AF/ Zoom Trigger AF)
One Push Trigger/Manual/Infinity/Near Limit setting
White balance: Auto WB/Indoor/Outdoor/One Push WB/Manual WB
Gain: Auto/Manual (-3 to +18 dB, 8 steps)
AE Control: Full Auto/Shutter Priority/Iris Priority/Manual/Bright/Spot AE
Exposure compensation: +/- 10.5 dB (15 steps in a unit of 1.5 dB)
Backlight Compensation: ON/OFF
Aperture control: 16 steps
Programmable factory presets
High Performance Digital Signal Processor (DSP)
Various customizable settings
Electronic Shutter/Slow Shutter
VBS and Y/C video output (SD modes only)
Picture Freeze Function
Spot AE
Internal/External sync
Video output: HD: HDMI
True Colour Live Video 32Bit
Cable with single plug connection, 250 cm
Built in mouse control device (Microsoft-track stick and mouse buttons)
Built in LED screen for image preview
Close-up illumination feature with SMD LED light
Movement On-Off Sensor and automatical ELM/Macro mode recognition

Main Unit:

Power supply and camera connections with integrated camera holder
Camera control electronics
Automatic camera mode recognition
Latest Intel processor
Latest HDD for data storage
Data backup
Disk drive with card reader
Windows 7 or later operational system
High quality video processor board and HDMI board

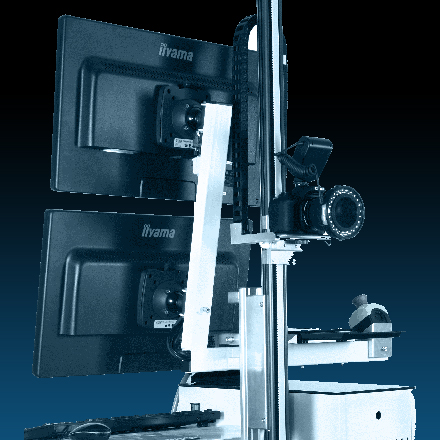

Two Widescreen Monitors

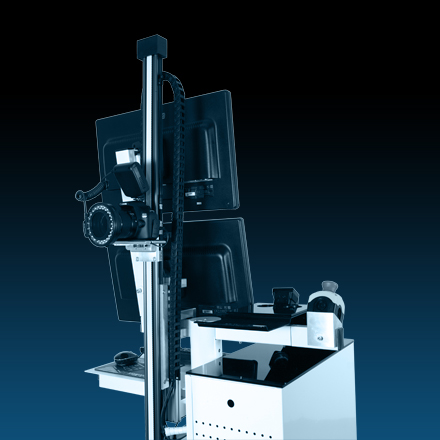

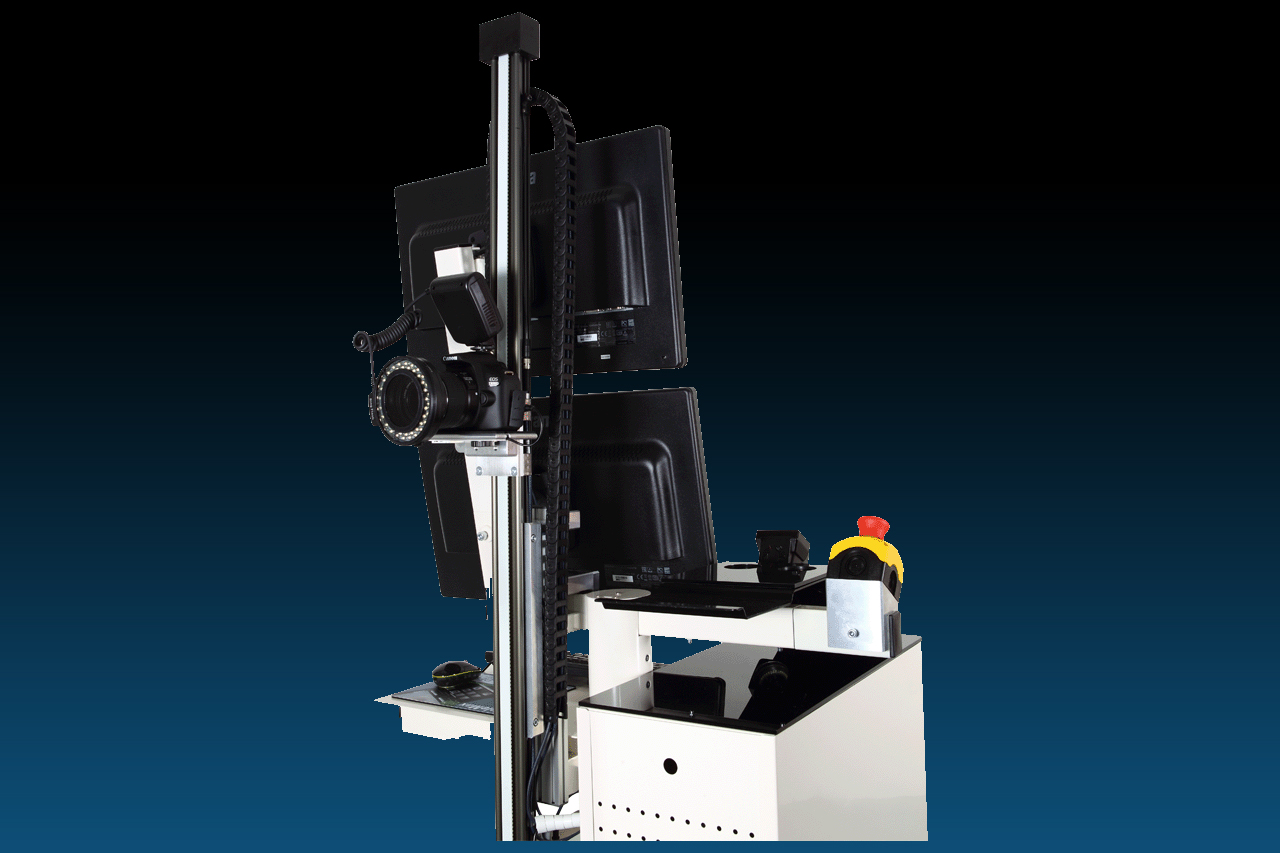

MoleMax System Trolley with Wheels and AMTBM Stand

To improve system performance, specifications are subject to change without notice.

General Technical Data:

The MoleMax system may be connected to any properly grounded outlet, which is secured with a 16A fuse (except of explosive dangerous areas).

Nominal Voltage: 110/230V AC, 50 Hz, 1,9/1,1A
Power Consumption: max. 850 W
Dimensions:  85 x 60 x 175 cm (W/L/H);
Weight:  ca. 100 kg
