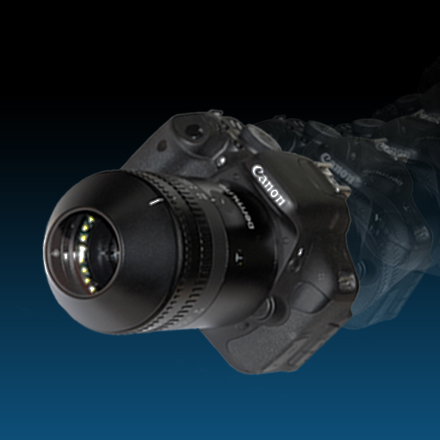

PhotoMax PRO DLF II
DETAIL

PhotoMAX PRO DLFII ofers digital video imaging from clinical overview up to advanced Dermoscopy, all images in high resolution quality. Together with
all new and redeveloped PhotoMAX Documentation Software it offers ideal Photo-Dermoscopy solution

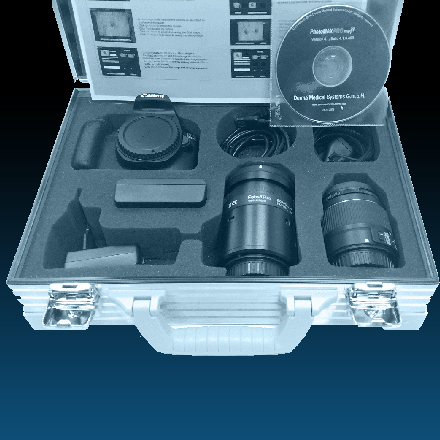

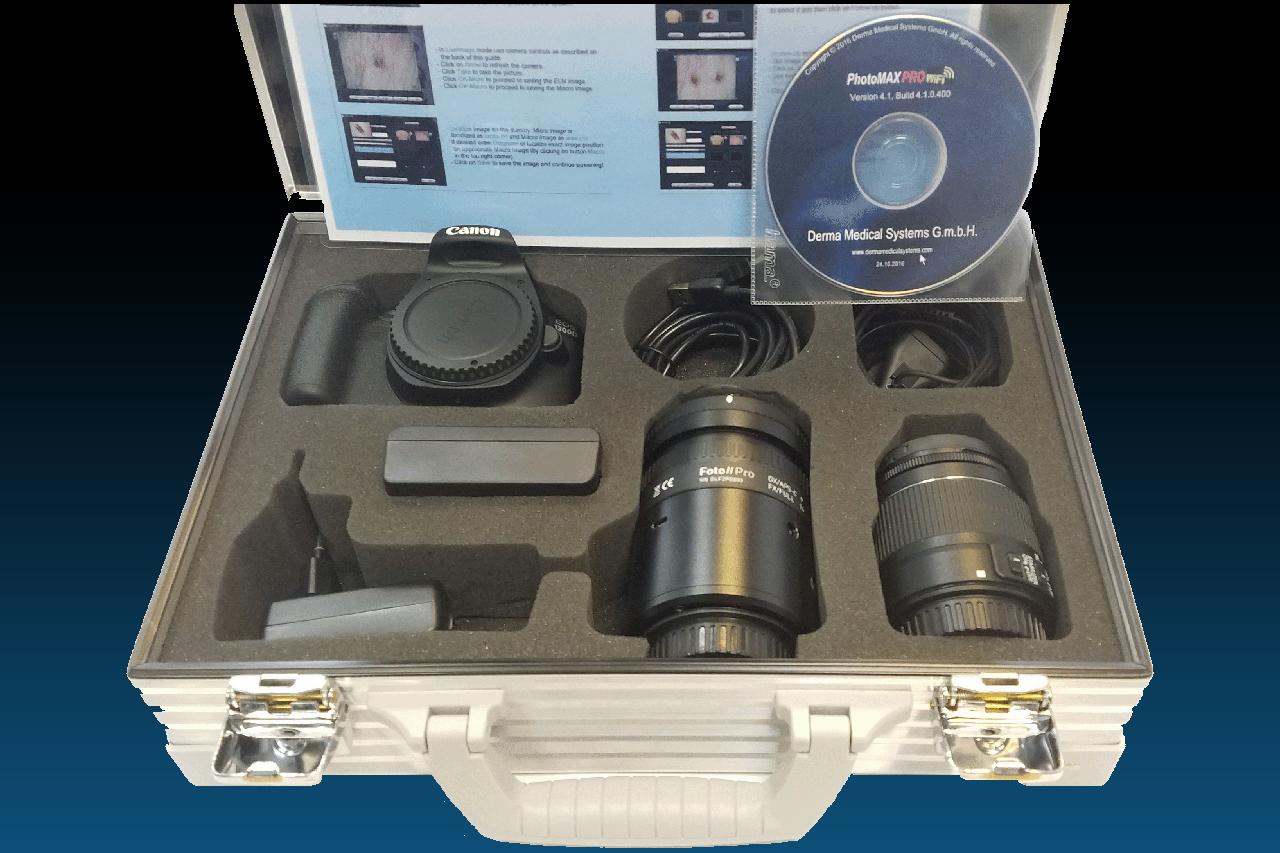

PhotoMAX PRO DLF II digital dermoscopy set consists of:

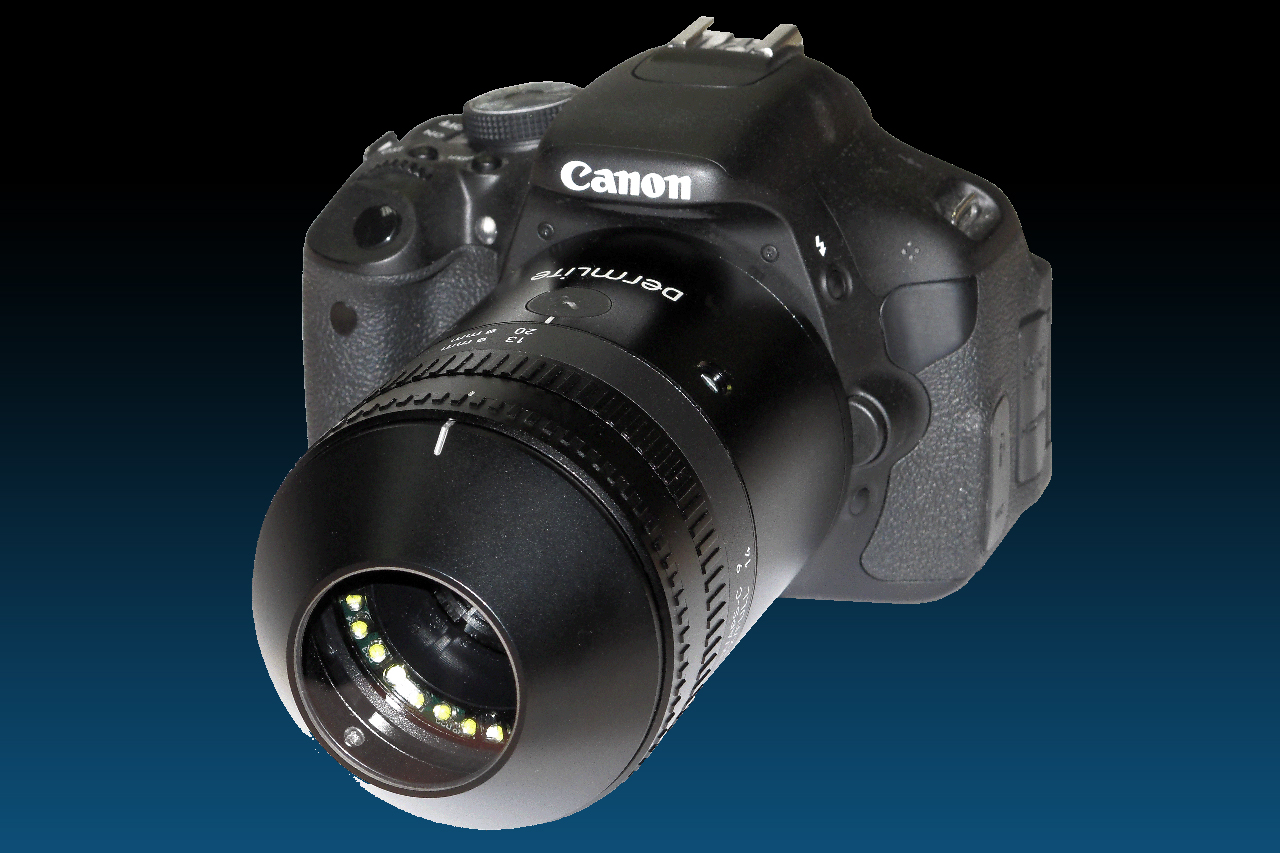

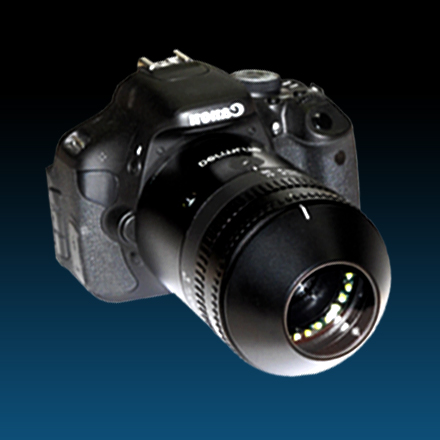

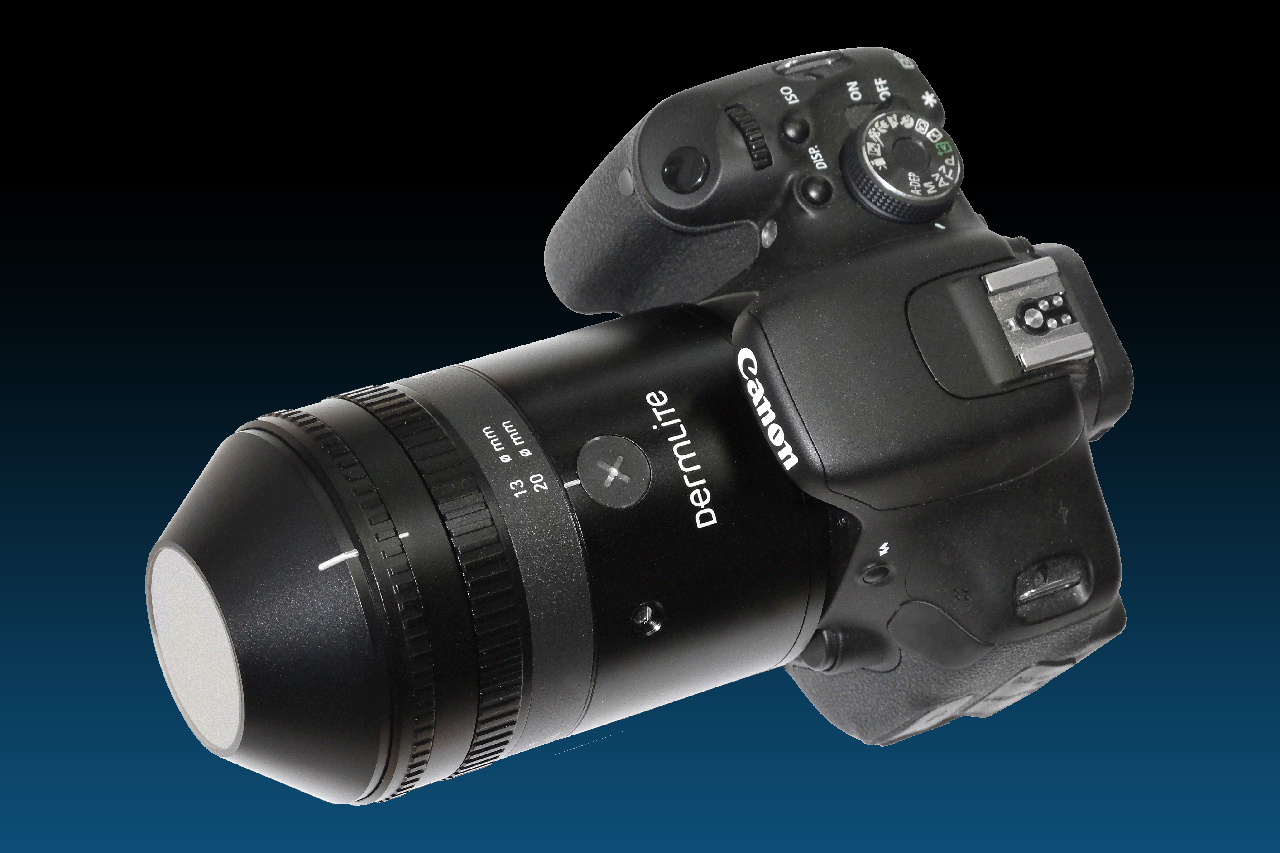

• High resolution Canon SLR Camera
• New polarized rechargeable ELM lense
• Redeveloped PhotoMAX Software
• Unique new Camera Software control
• Macro lense for macro Images

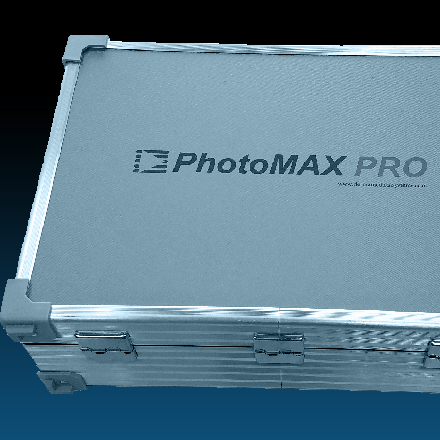

• Compact hard case transport box

Option:  PhotoMAX PRO DLF II WiFi

With the new WiFi Option you can work with Live Image or with wireless transfer of taken images. WiFi link stays online as long as Camera is on. Image Transfer within few seconds over advanced image transfer interface.

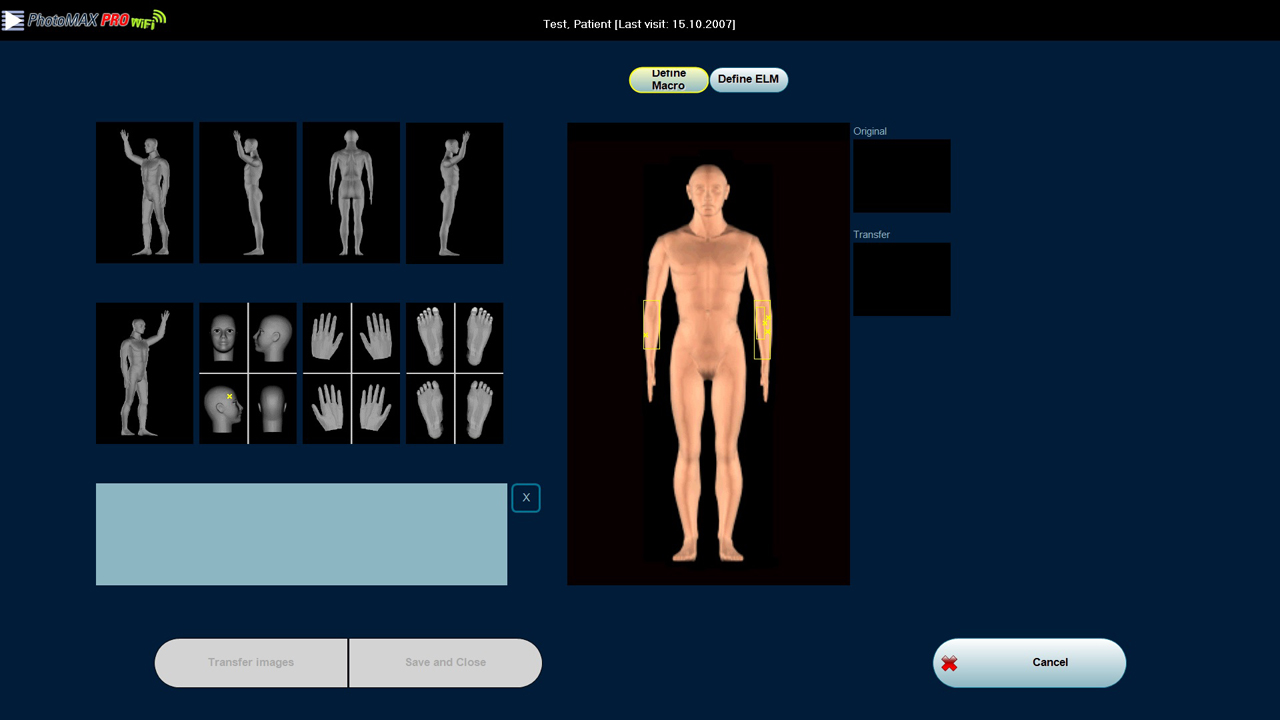

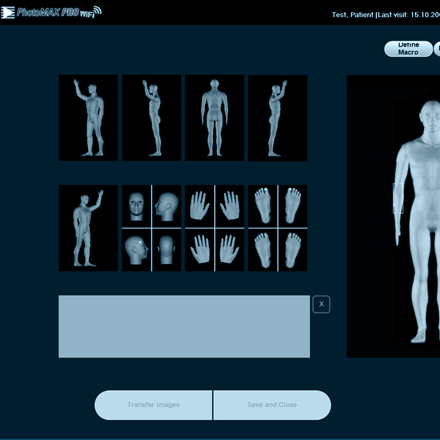

PhotoMAX PRO Software:

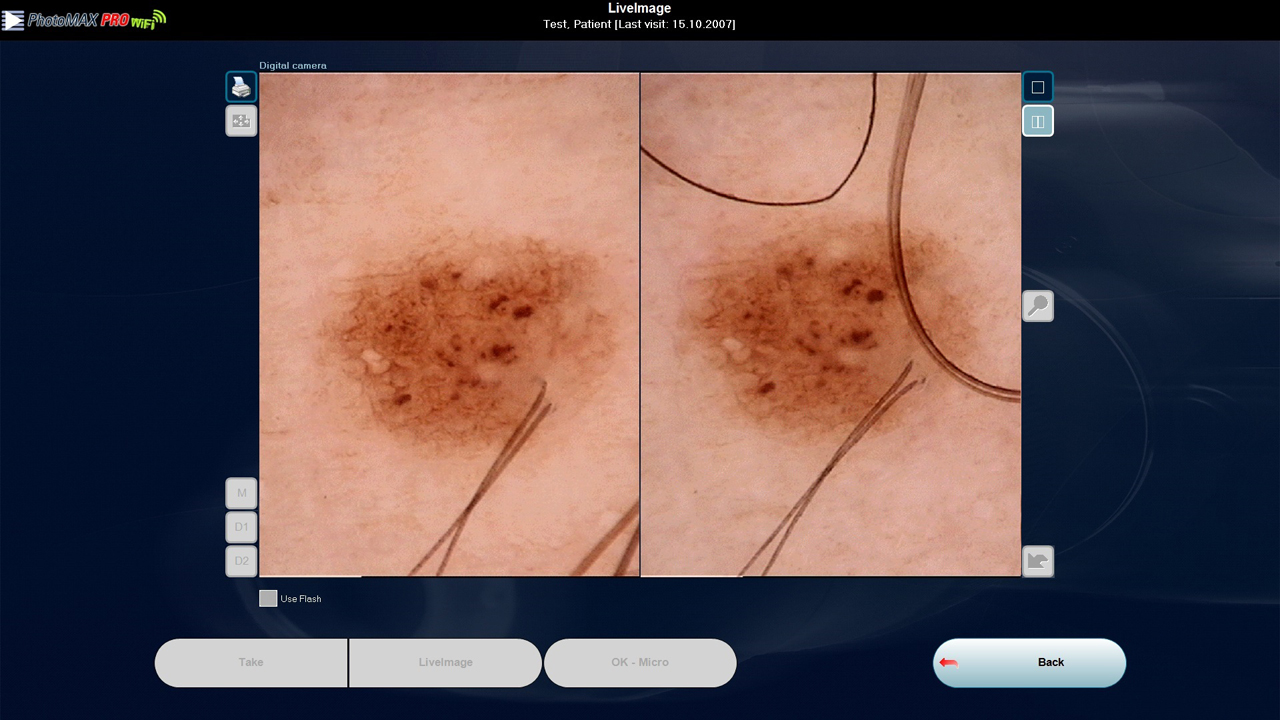

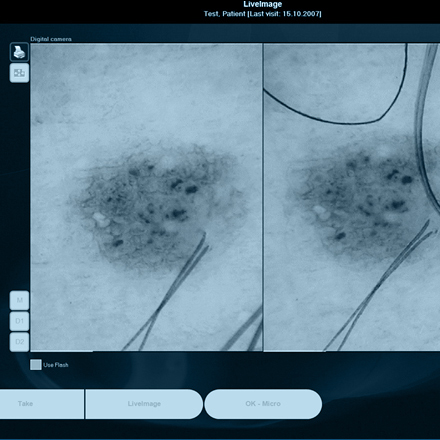

• Online LiveImage preview via USB
• Live Image preview on camera display
• Macro and clinical imaging capability
• Advanced documentation Software and networking with any MoleMax system
• Diagnosis support using Expertizer
• Real time follow up examinations

SPECIFICATION

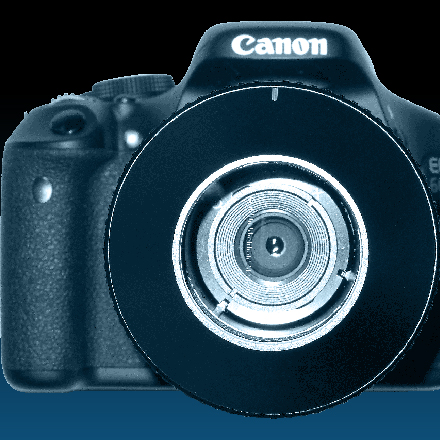

Canon EOS Digital SLR Camera:

Canon EOS 1300D or better

IMAGE SENSOR
Type Approx.: 22.3 mm x 14.9 mm
Effective Pixels Approx.: 18.0 megapixels
Total Pixels Approx.: 18.7 megapixels
Aspect Ratio: 3:2
Low-Pass Filter: Built-in/Fixed
Sensor Cleaning: Manual cleaning and Dust Delete Data acquisition
Colour Filter Type: Primary Colour

IMAGE PROCESSOR
Type: DIGIC 4+
______________

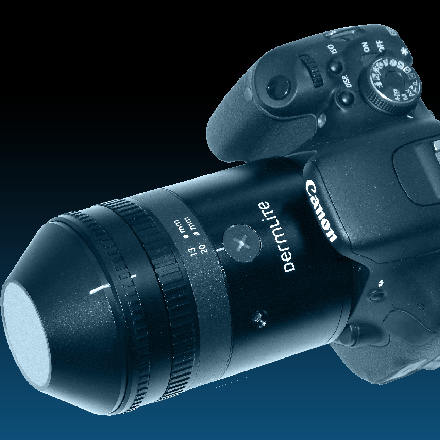

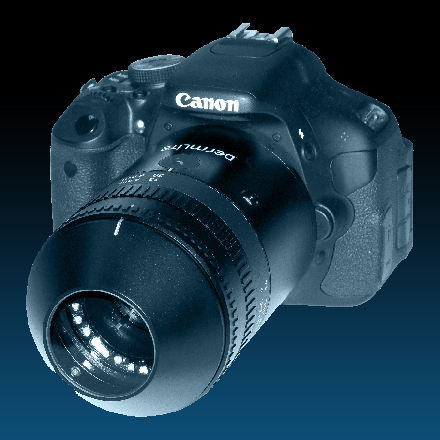

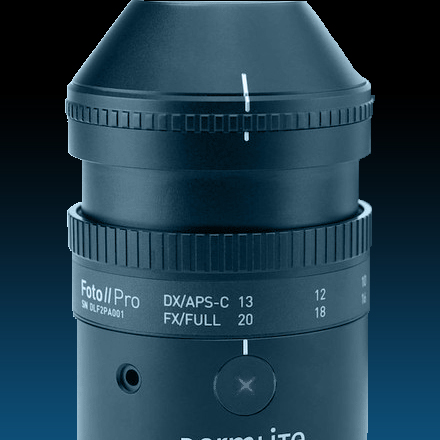

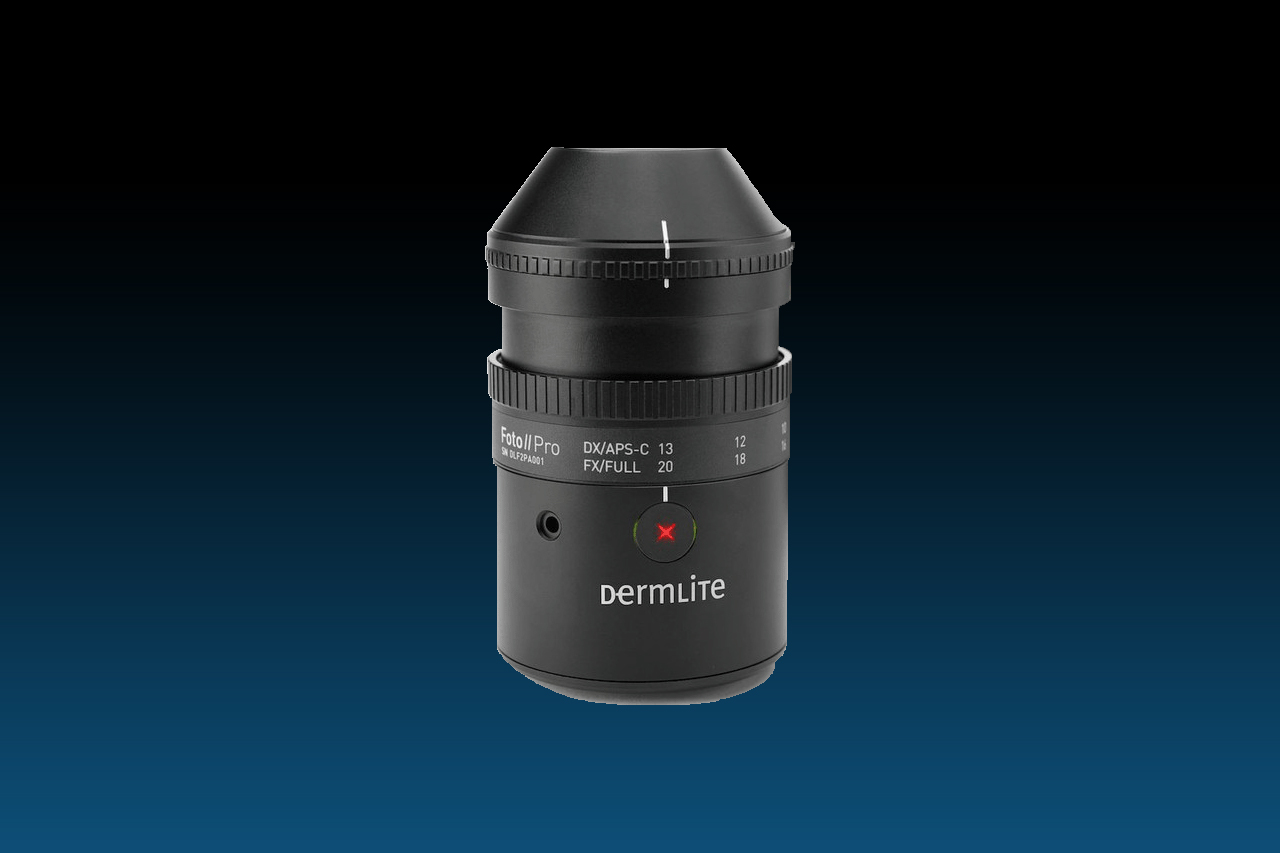

ELM Lens: 3Gen DermLite Foto II

Polarized and non-polarized illumination
6-element lens design for superior resolution, zoom, camera-controlled automatic Canon’s EF/EF-S standard bayonet
two extremely powerful lithium-polymer batteries
view range from 9 mm to 20 mm

Macro Lens: Canon EFS 18-55 III or better
______________

Software:
Compatible with Windows 7 (and newer) computers and laptops.

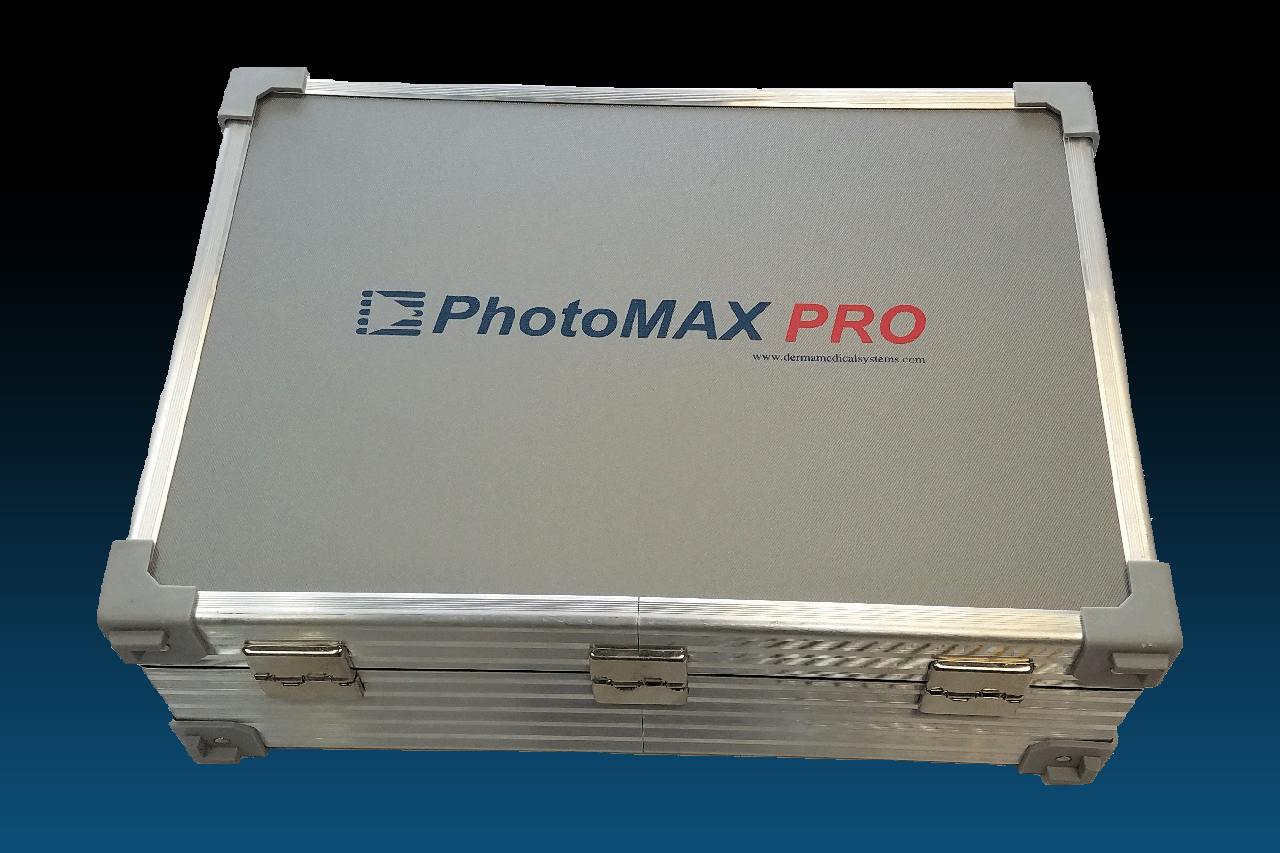

Delivered in hardcase transport box: 35cm x 25cm x 10cm
