MOLEMAX 360
DETAIL

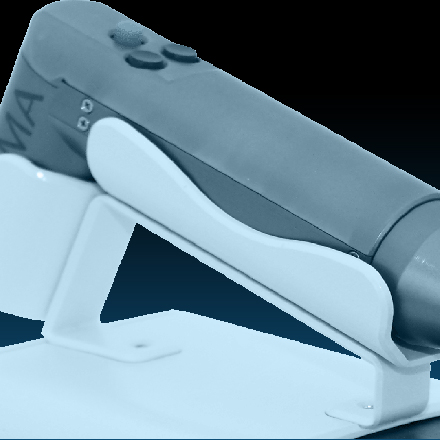

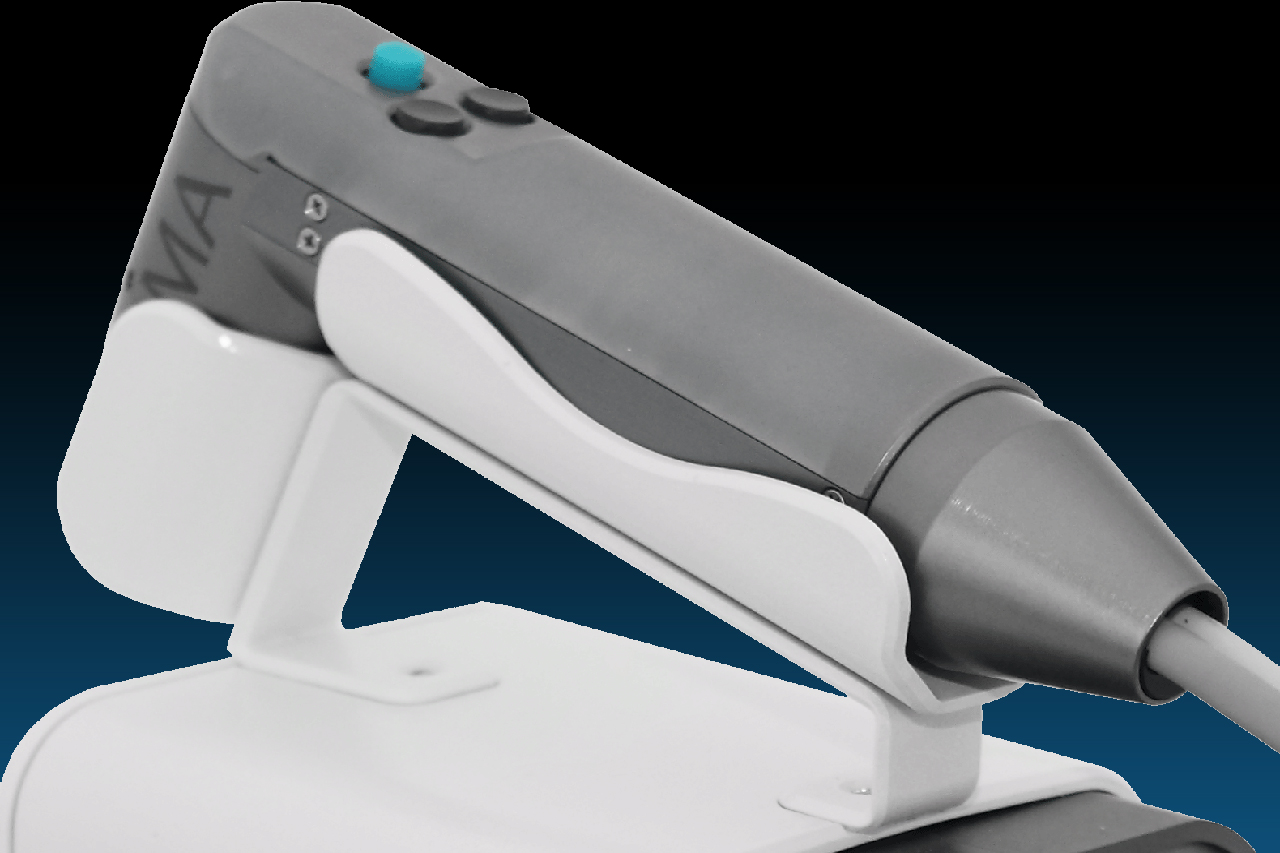

The distinguishing feature of Molemax 360 is its dedicated FullHD true digital video camera, specially developed for use in dermatoscopy field with fixed focus and fixed magnification for optimal performance in Follow-Up mode.
Thanks to the worldwide-patented technique of light polarization, dermatoscopic examinations can be done without use of immersion fluids.

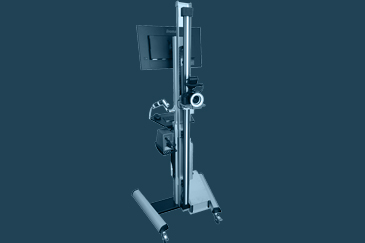

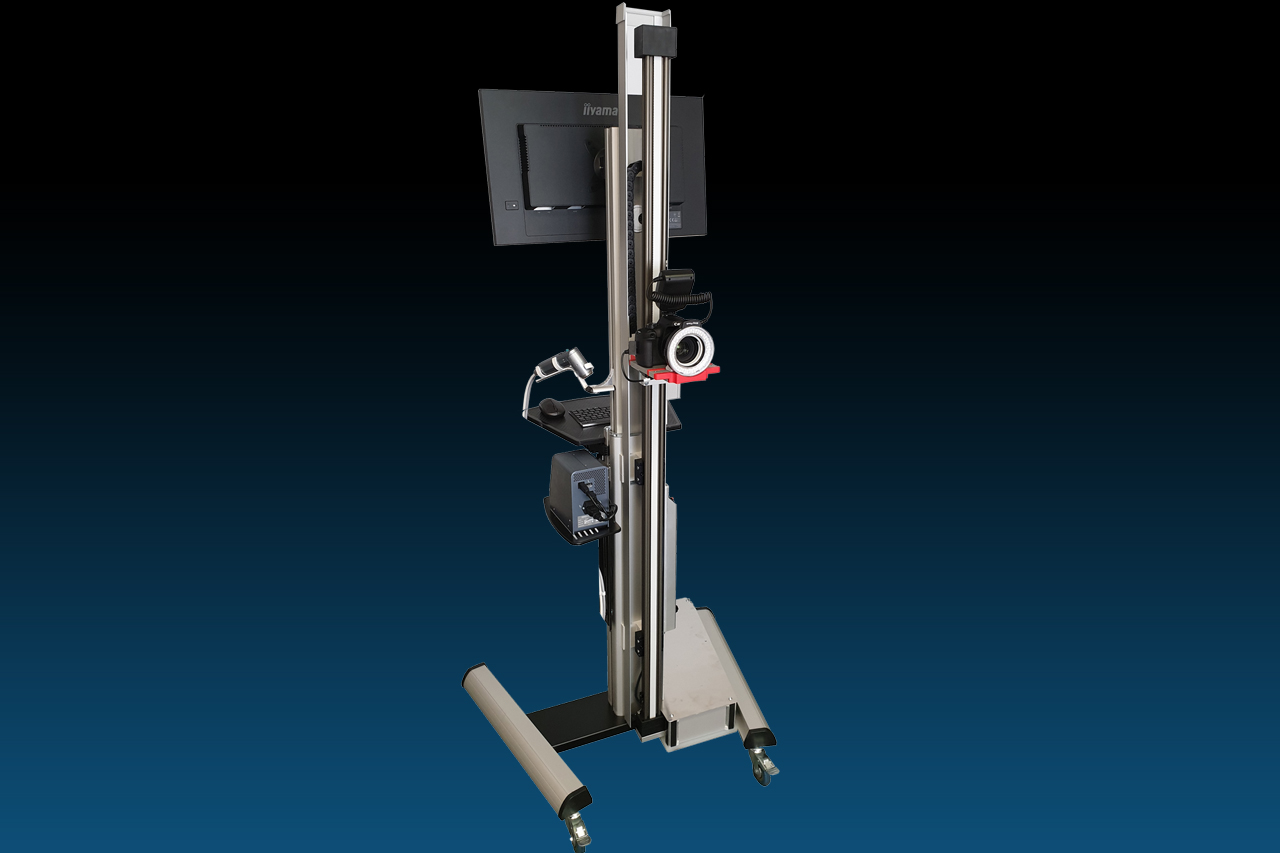

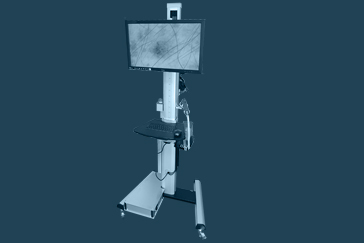

In this unique system fixed focus ELM camera is joined with the motorized AM.TBM stand to offer perfect solution for total body fotography using automatically controlled Digital Still Camera in unique Live Image mode.

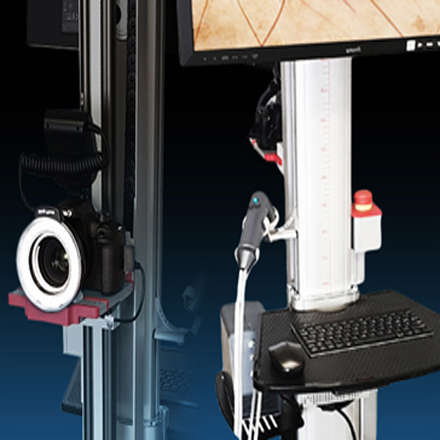

Full integration of automatic motorized total body mapping stand into the MoleMax 360 System with use of Canon SLR camera provides LiveImage with real full HD preview before saving. Advanced LED flash is used to achieve optimal light conditions and special polarization filter for eliminating shadows and suppressing reflections of the skin. Camera positioning is fast and accurate and offers automatic or manual repositioning together with laser and ultrasonic accurate patient positioning system.

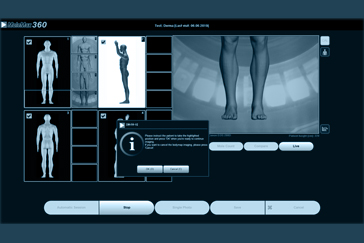

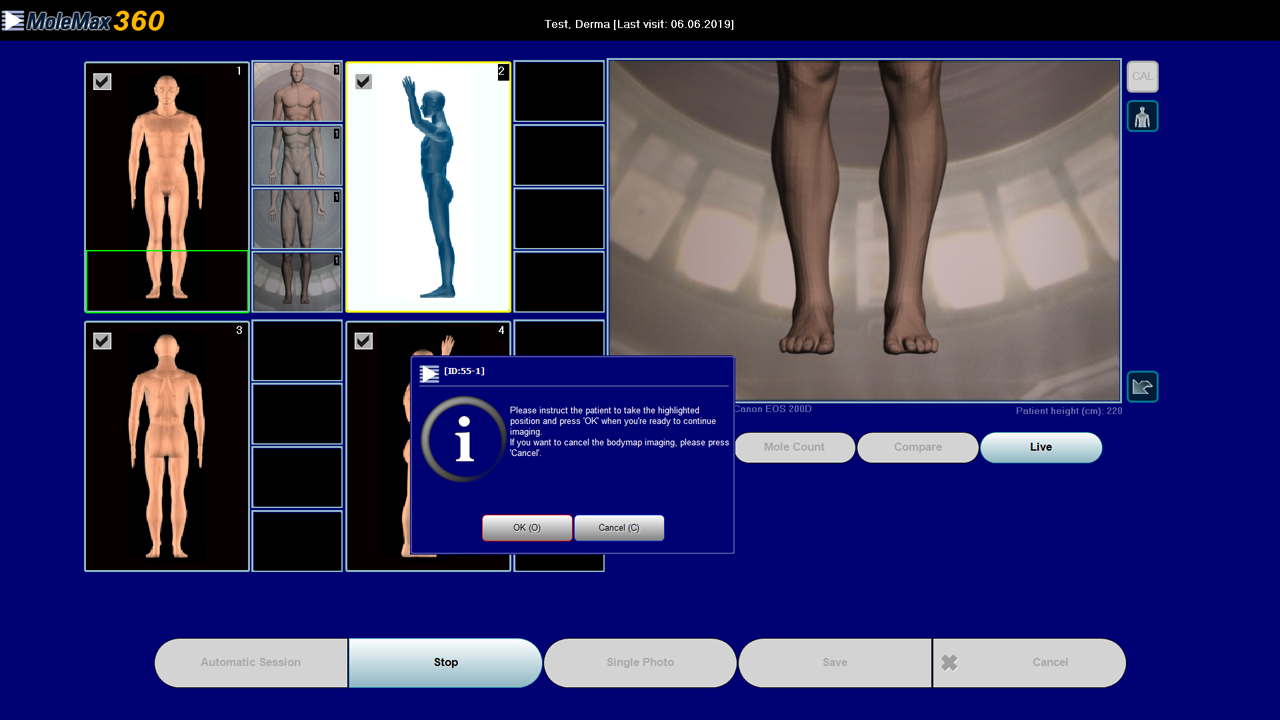

System offers fully automatically controlled total body mapping session with 16 predefined positions!

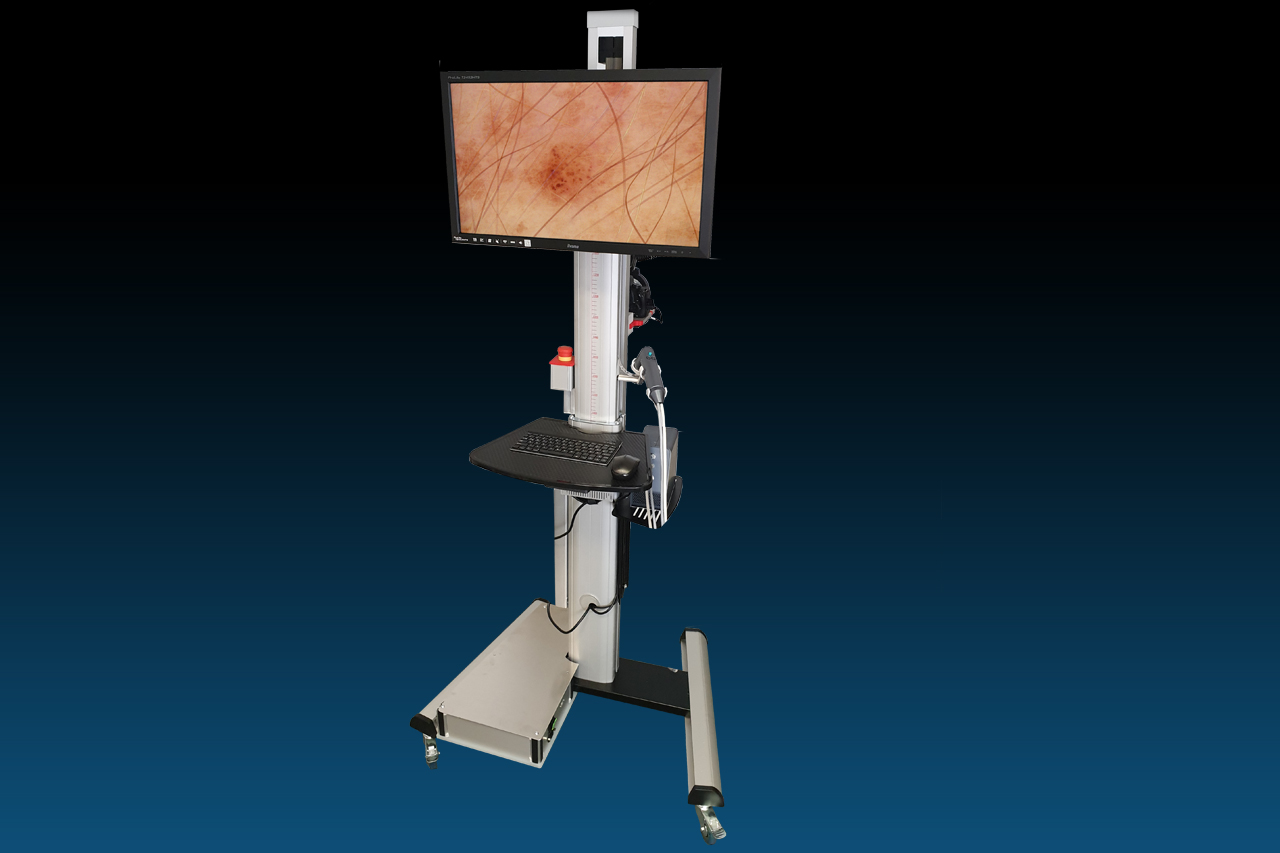

The MoleMax 360 is perfect Video Dermatoscopy fixed focus system extended with Total Body Photography for professional use.


Features:

• Reliable software, networkable with any MoleMax system!

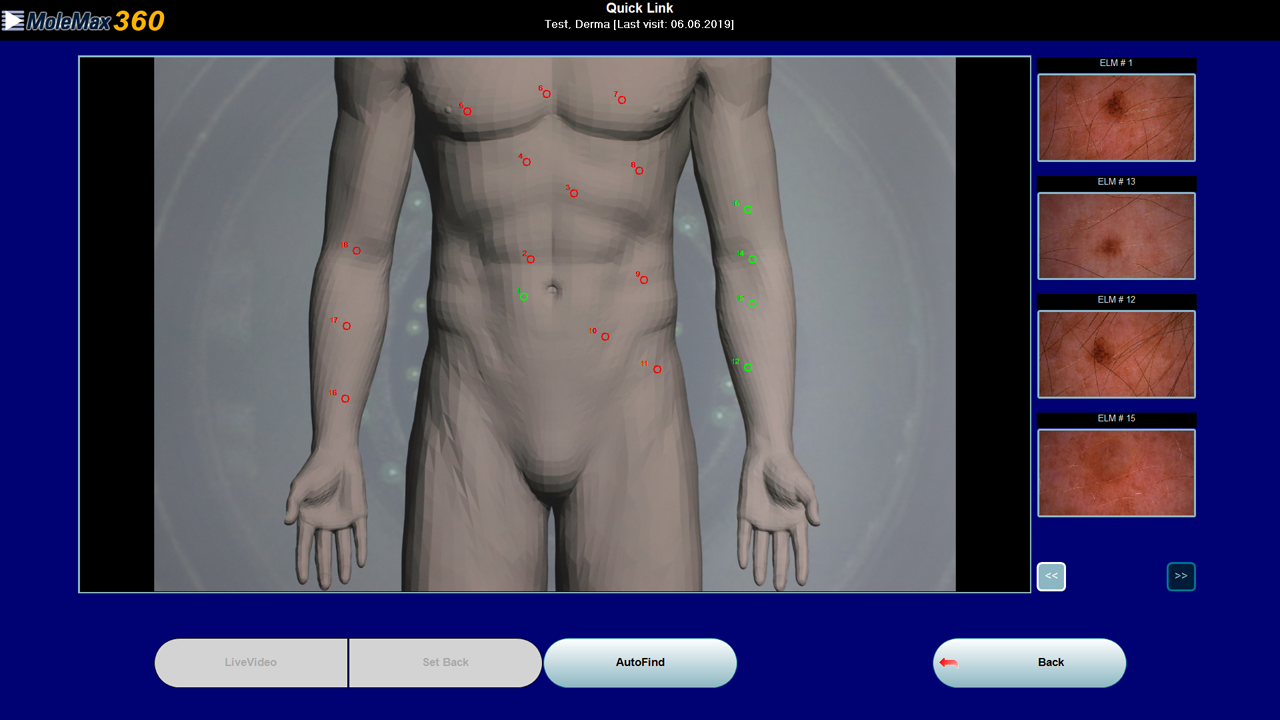

• Quick Link between Micro and Macro images

• Polarized ELM Illumination
• Build in Camera LED´s
• Fixed Focus
• Fixed Magnification 30x (and 50x digital)
• Fixed Color-Calibration for True Follow-Up

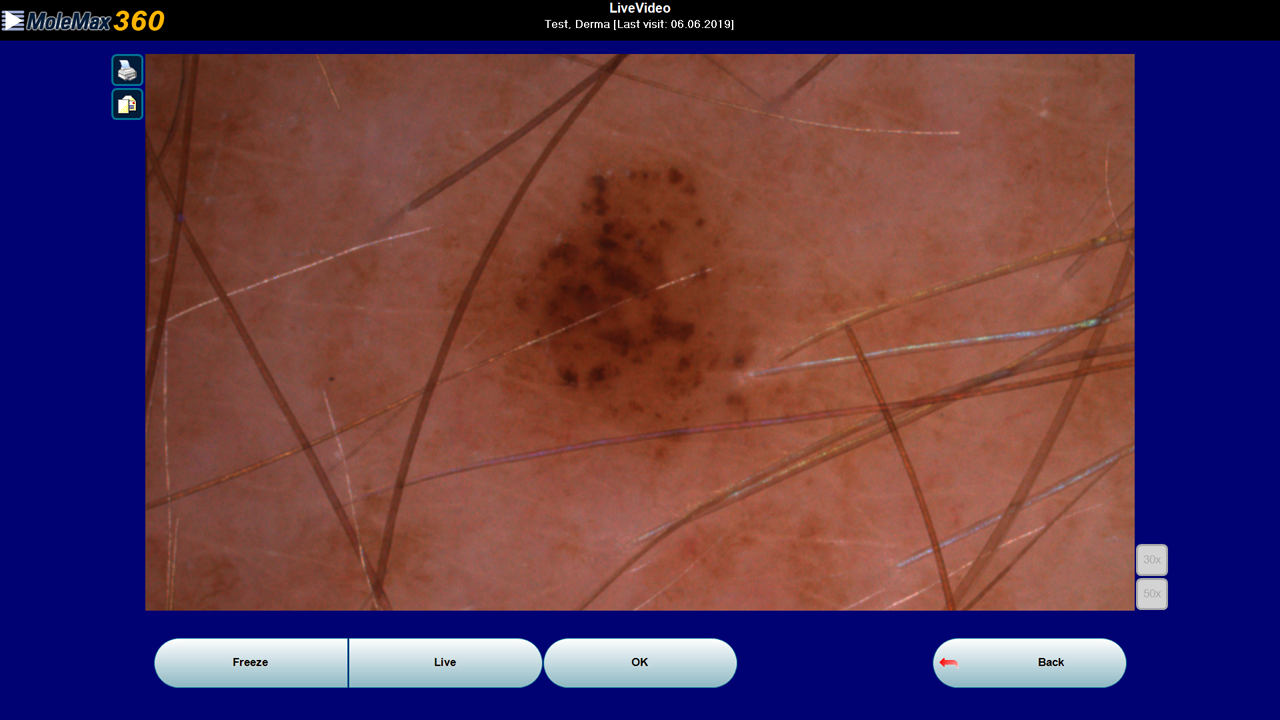

• True pure digital Real Time Video
• Fast and easy image acquisition
• Integrated remote mouse control

• Total Body images with Canon EOS camera

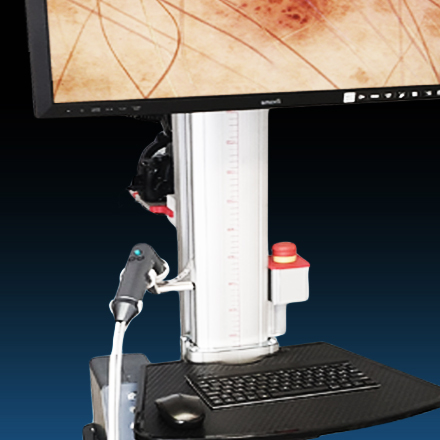

• Integrated AM.TBM stand and Canon SLR camera
• Advanced LED flash for optimal light
• Special polarization filter for eliminating shadows and suppressing reflections of the skin
• Fast and accurate automatical camera positioning
• Possibility of automatic/manual camera repositioning
• Automatical session with 16 TBM positions
• Additional sessions with different number of TBM positions
 • MoleCount software for fast lesion enumeration on the TBM images

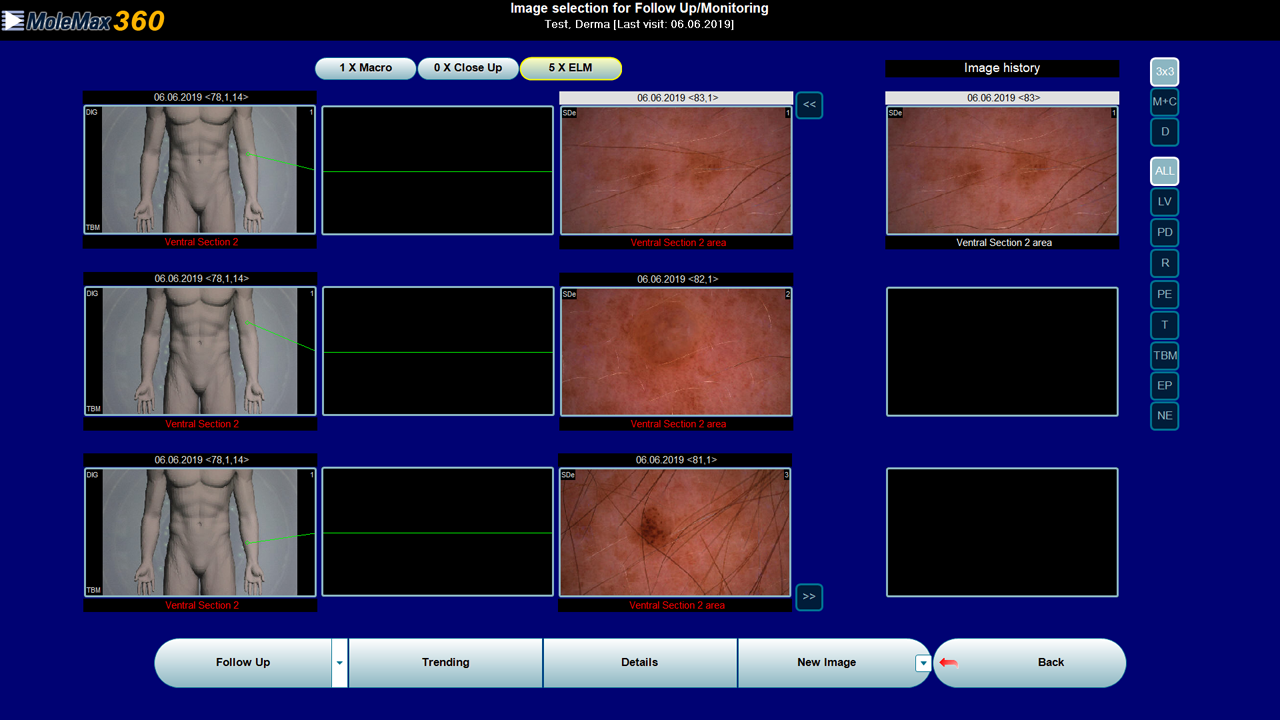

• TBM session follow-ups with side-by-side comparison and/or image overlay
• Laser and ultrasonic accurate patient positioning system
• Low power consumption

SPECIFICATION


ELM Camera Specification:
Sensor size: 1/2.8”
Resolution [pixel]: FullHD 1920x1080p
Chip Type: CMOS
Color Depth: 12 bit
Frame rate [fps]: 30
Operating temperature: 0°C-40°C
Cable length: up to 5m
Power Consumption <10W
Interface: USB 3

Digital Stil Camera Specification:
Canon EOS Series (depending on camera type used)

PC:
Mini-PC with Windows7-64bit or Windows 10-64bit operational system Recommended screen resolution: Full HD (1920x1080 Pixel)
Wireless Keybord with Touchpad

General Technical Data:

The MoleMax 360 system may be connected to any properly grounded outlet, which is secured with a 16A fuse (except of explosive dangerous areas).

Nominal Voltage: 110/230V AC, 50 Hz, 1,9/1,1A
Power Consumption: max. 700 W
Dimensions: 90 x 60 x 175 cm (W/L/H);
Weight: ca. 45 kg
