DermDOC HR
DETAIL

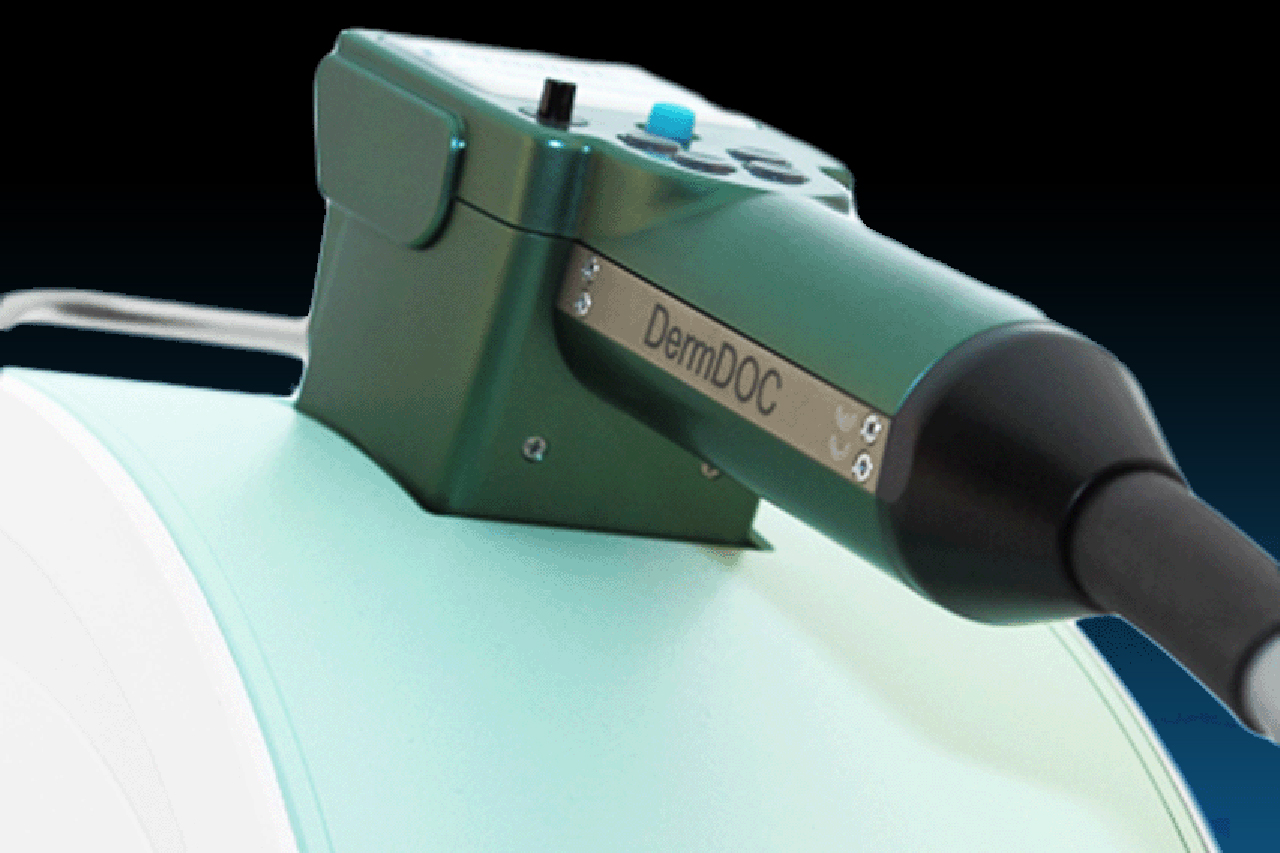

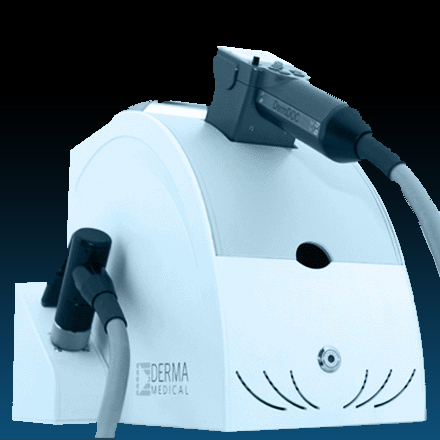

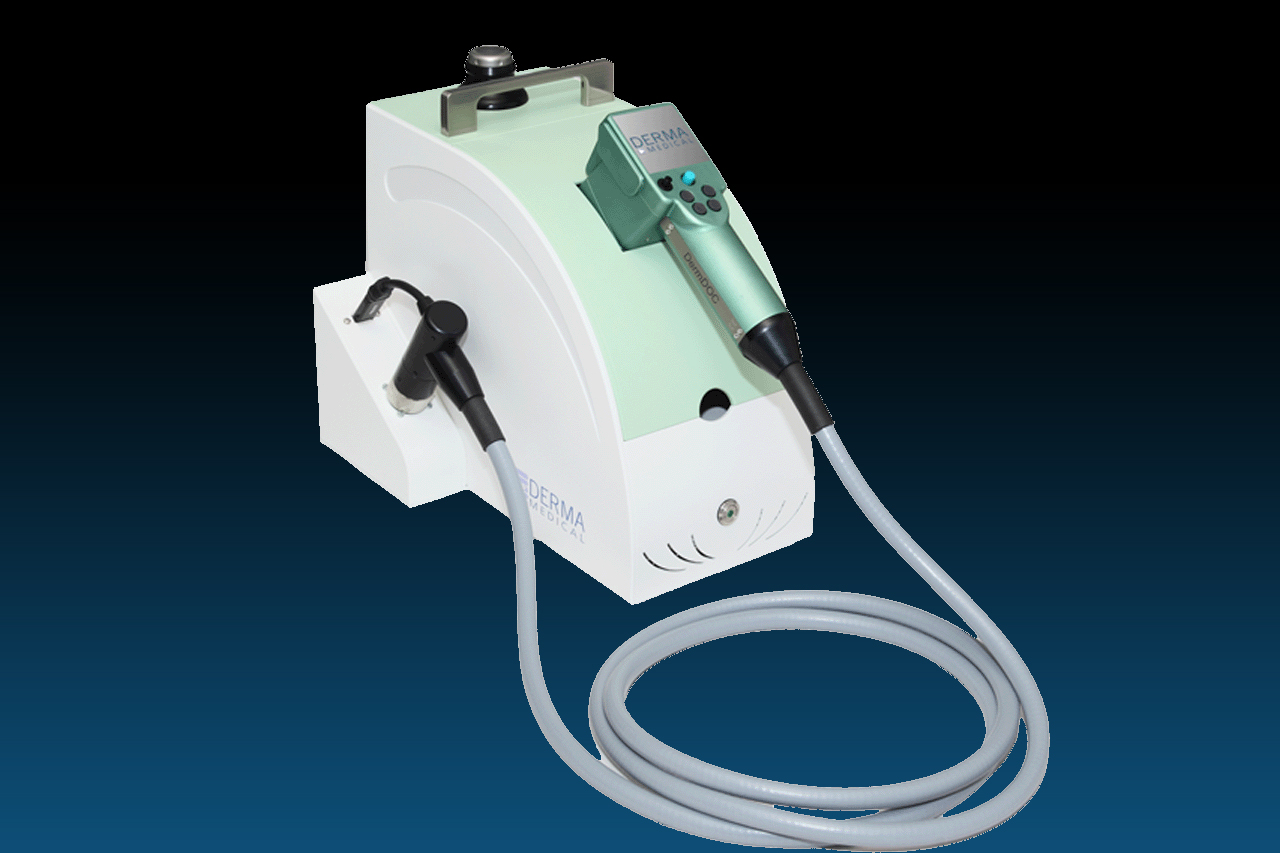

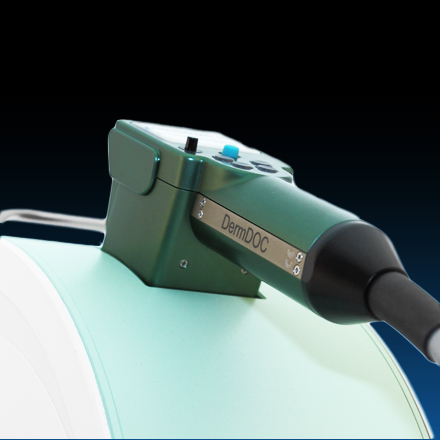

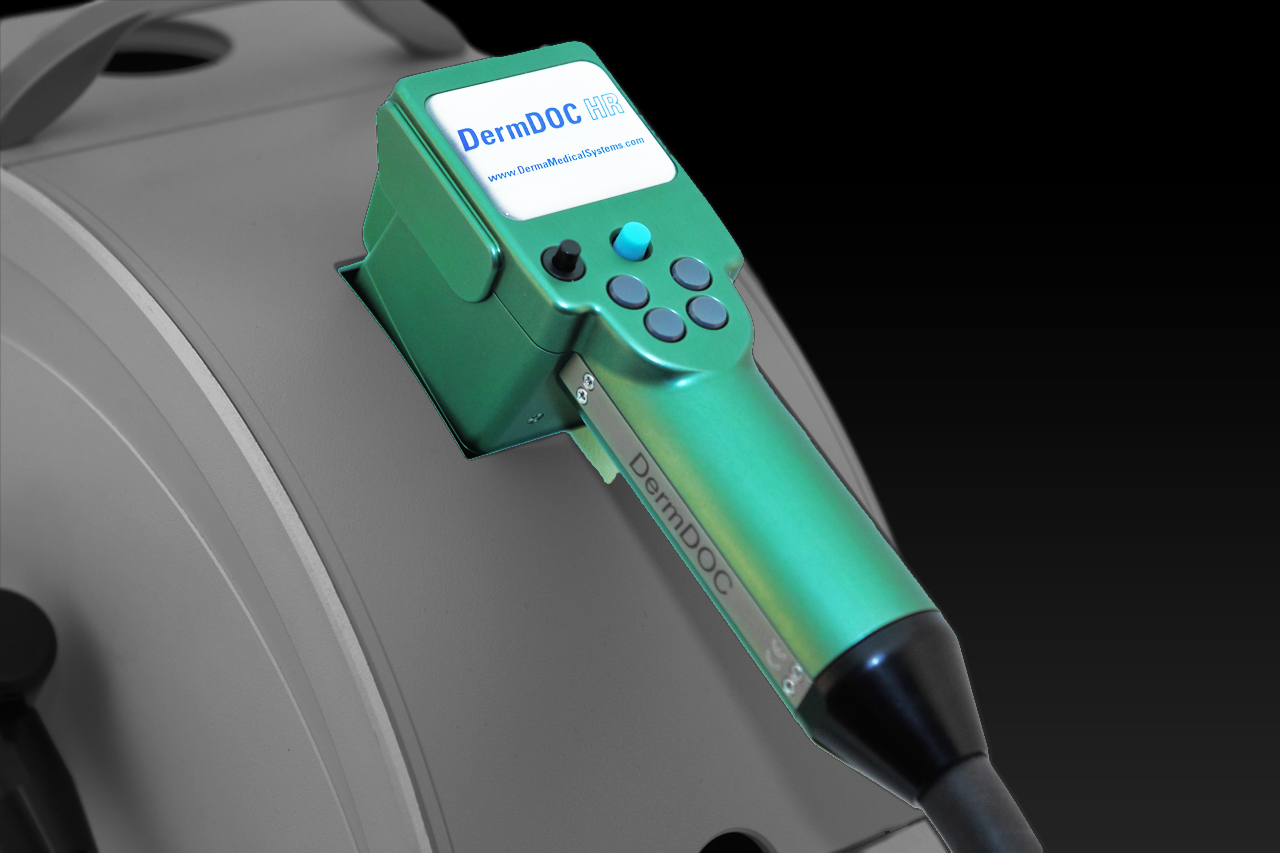

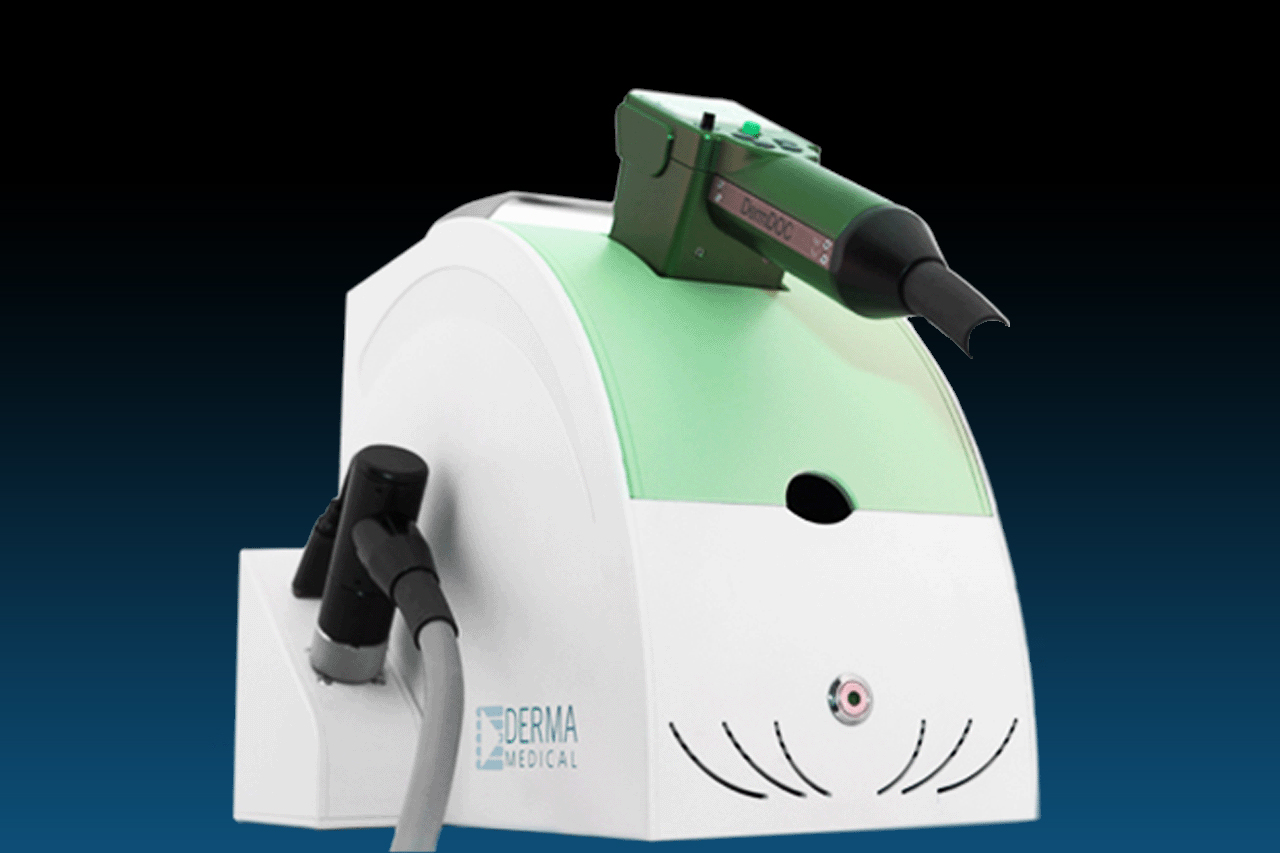

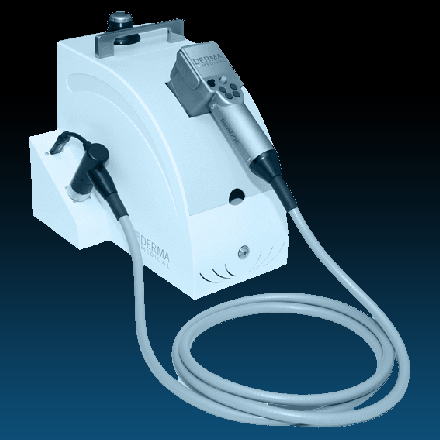

The distinguishing feature of DermDOC is its specially developed system electronics in a portable box. This economically efficient one-camera system meets the different requirements of ELM-, macro and even close-up imaging in HD Quality. Thanks to the worldwide-patented technique of light polarization dermatoscopic examinations can be done without the use of immersion fluids. The integrated LED light in the macro-imaging mode allows putting the camera directly onto the skin for taking close-up and clinical images.

DermDOC HR is developed as trickle-down design from MoleMax HD system. The system uses the same camera technology as MoleMax HD but the HD Quality Live Video is provided over USB 3 cable for easy connection to a third party desktop computer or a laptop after easy self-installation. It is compatible with any Windows 7 or newer computer equipped with USB 3.

Features:

• Portable Video System
• Polarized ELM Illumination
• HD Quality Image
• True Digital Image transfer without conversion
• Autofocus
• Real Time Zooming
• From Overview to Clinical Images
• Variable Magnification
• Automatic mode switching between Macro and Micro Application
• Camera Cable exchangeable
• Easy Self Installation
• To be connected to any mutimedia PC or notebook via USB 3 and USB 2 cable

The DermDOC HR advantages at a glance:

• No immersion oil or contact fluids for digital dermatoscopy required thanks to the patented cross polarization illumination
• High Definition Image transfer to the computer digitally without conversions or any other quality loss
• Integrated mouse in camera for easy software control and handling
• User friendly system, allows equipment to be operated from the camera during examinations
• Automatic recognition of ELM or macro imaging mode ensures fast and easy operation

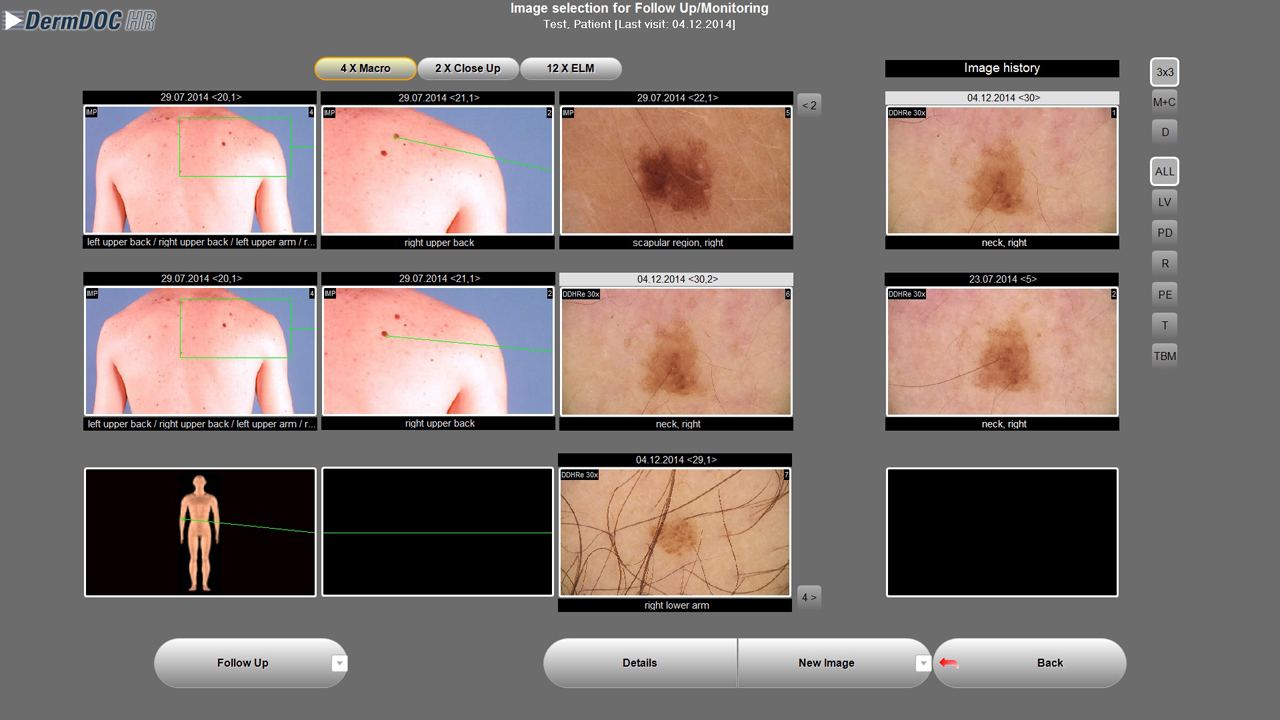

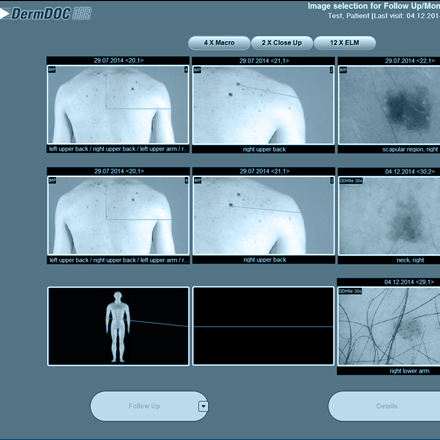

• Logical linking of macro, close up and ELM image as well as additional import of histopathological images
• Reliable software, proved by more then 3000 users all over the world
Networkable with any other MoleMax system
SPECIFICATION

Camera Specifications:

Effective picture elements: Approx. 2,000,000 pixels
Video signal: HD: 720p
Lens: 10x zoom (F1.8 to F2.1)
f=5.1 mm (WIDE) to 51 mm (TELE)
Zoom movement speed:
Optical WIDE/Optical TELE Approx. 1.0 sec
Optical WIDE/Digital 4x TELE Approx. 1.5 sec
Optical Wide/Digital 4x TELE Approx. 0.5 sec
Focus movement time: âˆž to Near Approx 0.1 sec
Digital zoom: unused
Angle of view (H): Approx. 50 degree (WIDE end) to Approx. 5.4 degree (TELE end) (When an HD or SD (SQUEEZE) signal is output)
Minimum object distance: 10 mm (WIDE end), 800 mm (TELE end)
Minimum illumination (Typical): 12 lux (F1.8) with 50 IRE 1.0 lux ICR On (F1.8) with 50 IRE
Recommended illumination: 100 to 100,000 lux
S/N Ratio: 50 dB or more
Electronic shutter speed: 1/2 to 1/10000 sec. (21 steps)
Focus: Full Auto (Normal AF/Interval AF/ Zoom Trigger AF)
One Push Trigger/Manual/Infinity/Near Limit setting
White balance: Auto WB/Indoor/Outdoor/One Push WB/Manual WB
Gain: Auto/Manual (-3 to +18 dB, 8 steps)
AE Control: Full Auto/Shutter Priority/Iris Priority/Manual/Bright/Spot AE
Exposure compensation: +/- 10.5 dB (15 steps in a unit of 1.5 dB)
Backlight Compensation: ON/OFF
Aperture control: 16 steps
Video output: HD: USB3
Cable with single plug connection, 250 cm
Built in mouse control device (Microsoft-track stick and mouse buttons)
Close-up illumination feature with SMD LED light
Movement On-Off Sensor and automatical ELM/Macro mode recognition

Minimum PC or Laptop Requirements:

Microsoft Windows 7 or later, USB 2 and USB 3 Connection, Full HD Screen, Graphic display adapter capable of 1920 x 1080 True Color, 1 GB free hard drive space, CD-ROM Drive, Mouse, Keyboard, DirectX 9 or newer installed

General Technical Data:

The DermDOC HR system may be connected to any properly grounded outlet, which is secured with a 16A fuse (except of explosive dangerous areas).

Nominal Voltage: 110/230V AC, 50 Hz, 1,9/1,1A
Power Consumption: max. 100 W
Bigger Casing:
Dimensions: 30 x 25 x 35 cm (W/L/H);
Weight: ca. 5 kg
